若有一個 Observable Collection定義如下,要將其繫結到ListBox
class BookList : ObservableCollection<Book> {
public BookList ( )
: base ( ) {
Add ( new Book { Title = "Learning ASP.NET" , Price = 590 } );
Add ( new Book { Title = "Learning VB" , Price = 490 } );
Add ( new Book { Title = "Learning C#" , Price = 600 } );
Add ( new Book { Title = "Learning Blend" , Price = 500 } );
}
}
class Book {
public string Title { get; set; }
public int Price { get; set; }
}
public BookList ( )
: base ( ) {
Add ( new Book { Title = "Learning ASP.NET" , Price = 590 } );
Add ( new Book { Title = "Learning VB" , Price = 490 } );
Add ( new Book { Title = "Learning C#" , Price = 600 } );
Add ( new Book { Title = "Learning Blend" , Price = 500 } );
}
}
class Book {
public string Title { get; set; }
public int Price { get; set; }
}
- 加一個ListBox

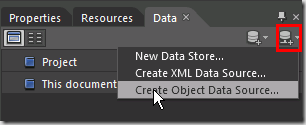

- Create Object Data Source
- 選BookList

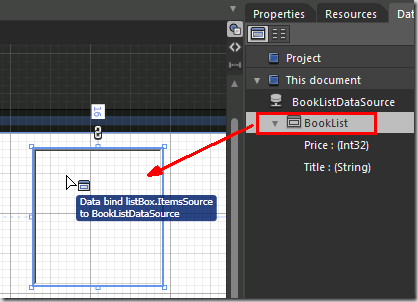

- Bind
- 效果如下

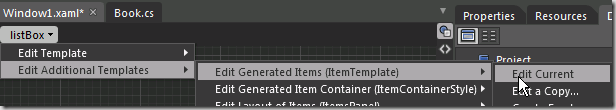

- 編輯Data Template

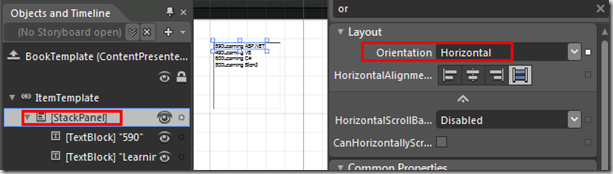

- 修改StackPanel Orientation

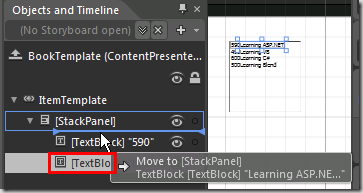

- 使用拖曳方式,調整TextBlock順序

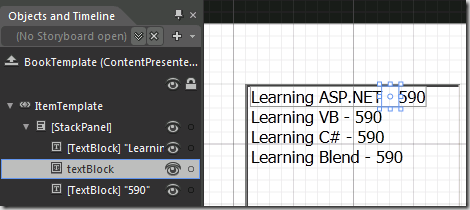

- 加個TextBlock到Template
參考XAML如下
<Window
xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
xmlns:local="clr-namespace:WpfApplication7" xmlns:d="http://schemas.microsoft.com/expression/blend/2008" xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006" mc:Ignorable="d"
x:Class="WpfApplication7.Window1"
x:Name="Window"
Title="Window1"
Width="640" Height="480">
<Window.Resources>
<local:BookList x:Key="BookListDataSource" d:IsDataSource="True"/>
<DataTemplate x:Key="BookTemplate">
<StackPanel Orientation="Horizontal">
<TextBlock Text="{Binding Title}"/>
<TextBlock x:Name="textBlock" TextWrapping="Wrap" Text=" - "/>
<TextBlock><Run Text="590"/></TextBlock>
</StackPanel>
</DataTemplate>
</Window.Resources>
<Grid x:Name="LayoutRoot" DataContext="{Binding Source={StaticResource BookListDataSource}}">
<ListBox x:Name="listBox" Height="144" Margin="168,40,0,0" VerticalAlignment="Top" ItemTemplate="{DynamicResource BookTemplate}" ItemsSource="{Binding}" HorizontalAlignment="Left" Width="144"/>
</Grid>
</Window>
xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
xmlns:local="clr-namespace:WpfApplication7" xmlns:d="http://schemas.microsoft.com/expression/blend/2008" xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006" mc:Ignorable="d"
x:Class="WpfApplication7.Window1"
x:Name="Window"
Title="Window1"
Width="640" Height="480">
<Window.Resources>
<local:BookList x:Key="BookListDataSource" d:IsDataSource="True"/>
<DataTemplate x:Key="BookTemplate">
<StackPanel Orientation="Horizontal">
<TextBlock Text="{Binding Title}"/>
<TextBlock x:Name="textBlock" TextWrapping="Wrap" Text=" - "/>
<TextBlock><Run Text="590"/></TextBlock>
</StackPanel>
</DataTemplate>
</Window.Resources>
<Grid x:Name="LayoutRoot" DataContext="{Binding Source={StaticResource BookListDataSource}}">
<ListBox x:Name="listBox" Height="144" Margin="168,40,0,0" VerticalAlignment="Top" ItemTemplate="{DynamicResource BookTemplate}" ItemsSource="{Binding}" HorizontalAlignment="Left" Width="144"/>
</Grid>
</Window>
